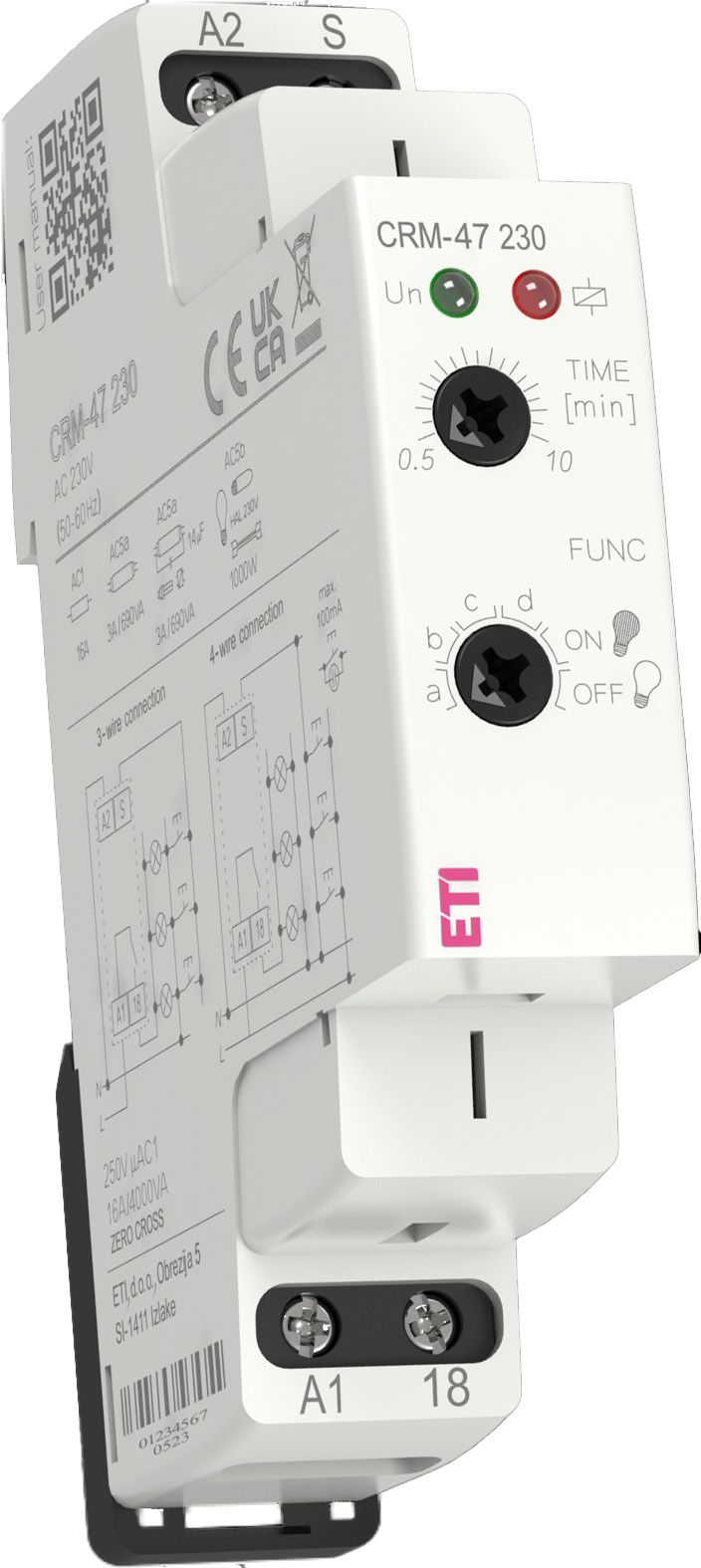

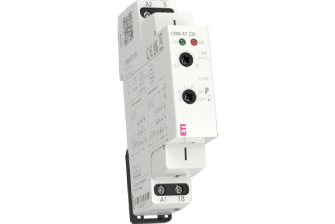

Programmable Staircase Switch CRM-47

Programmable Staircase Switch CRM-47

Programmable Staircase Switch CRM-47

Whether you're looking to enhance the safety of your stairways, improve energy efficiency in common areas, or add a level of sophistication to your lighting controls, the CRM-47 offers a comprehensive solution. Its programmability, coupled with advanced features like the zero-cross detection and surge current management, makes it an indispensable tool for modern, efficient buildings.

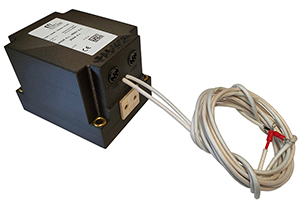

Triggy Fuse: A Technological Leap in EV Battery Protection

Triggy Fuse: A Technological Leap in EV Battery Protection

Advanced Hybrid Fuse Technology for Enhanced Electric Vehicle Safety



Triggy fuse is a protection device for the electric car battery pack. It is a hybrid between a classic fuse and a pyrotechnic switch. It combines all the positive technical properties of both components. It encompasses additional functionalities, such as internal tripping in case of critical overcurrent, and two inputs for external tripping (from an airbag or BMS).



Technical Development Journey

The concept of the Triggy Fuse was initiated in 2017 at ETI, in a collaborative effort with a leading electric car manufacturer. Initial tests showed that the technical requirements of an electric car cannot be solved with a "classic" fuse, which has a fixed current-time characteristic and cannot be interrupted by an external signal. Therefore our team had to find another solution, which was to upgrade it with a pyrotechnic switch. Originating from the space industry during the Gemini and Apollo programs, these switches have evolved to meet the high-voltage requirements of modern EVs as they can withstand voltages up to 1000V d.c.

Innovative Design and Patent Protection

The combination of the two components gives us a product that integrates the positive features of both and that is the Triggy fuse. Designed to support up to 800V d.c. and 600A, the Triggy Fuse has two inputs for ECU and BMS signal and its own overcurrent tripping with REED contact. This dual-triggering approach, coupled with its high-current handling capacity, positions the Triggy Fuse as a superior alternative to traditional protection devices in electric vehicle applications.

Triggy fuse is protected by a family of 7 patents.

Endorsement by Industry Experts

It is best for the customer to introduce the innovation. And that's what Mate Rimac did in the case of the Triggy fuse. At the link below you can watch a video that introduces Triggy fuse in more detail between 53:55 and 54:40.

Most important for the meaning of this innovation are his words at the end of the presentation: "Something like Triggy Fuse didn't even exist on the market a couple of years ago." Which is absolutely true.

Conclusion

The Triggy Fuse is more than just an advancement in EV protection; it's a strategic response to the complex safety challenges faced by modern electric vehicles. For OEMs and EV manufacturers seeking reliable, high-performance protection solutions, the Triggy Fuse offers an unparalleled combination of safety, reliability, and technological innovation.

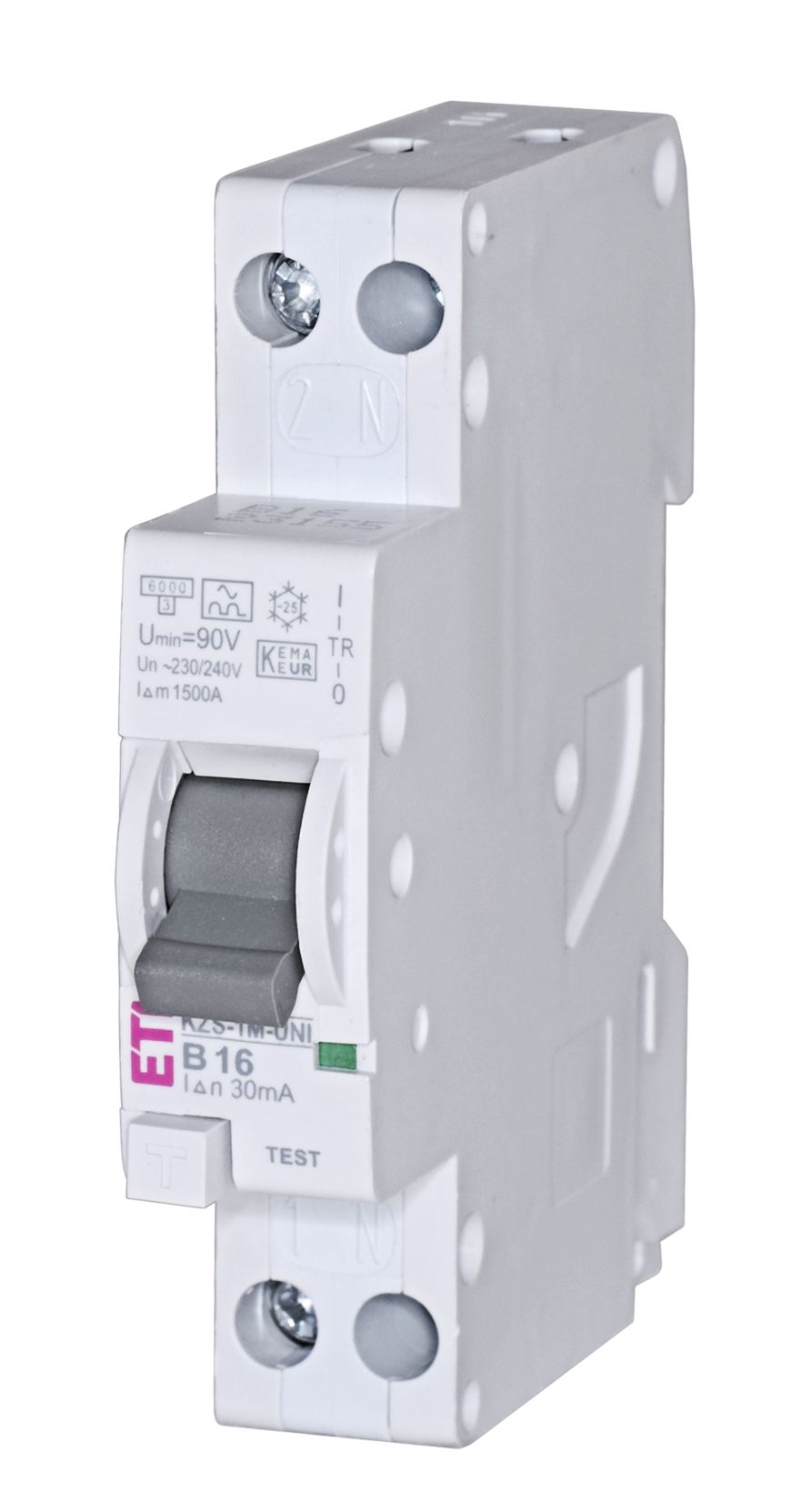

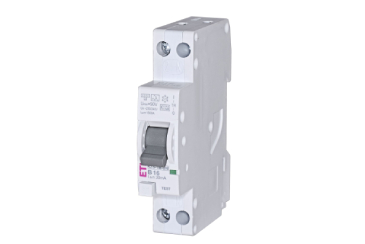

RCBO KZS 1M UNI

RCBO KZS 1M UNI

RCBO KZS 1M UNI



Introducing the KZS-1M UNI - a versatile solution for electrical installations. With the option to connect the electrical supply from the top or bottom, it offers flexibility to suit various setups.







KZS 1M UNI combining an MCB and an RCCB in a single 1-module unit, with active and neutral pole switching. This innovative solution prioritizes safety for both individuals and electrical systems, finding applications in residential, commercial, and industrial installations. Operating reliably down to -35°C, it offers unparalleled versatility. Plus, with the option to connect the electrical supply from either the top or bottom, installation becomes a breeze. The reset version features a clear toggle position indicator, ensuring transparency in system shutdowns and minimizing user errors.





Attention to details:

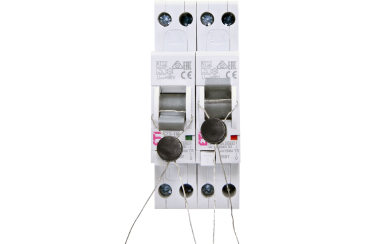

 The option of sealing in the ˝ON˝ or ˝OFF˝ position

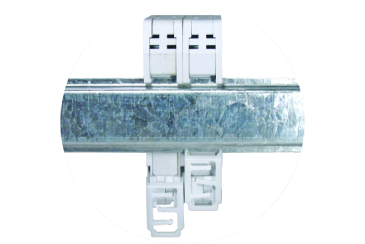

Easy removal from existing busbar system

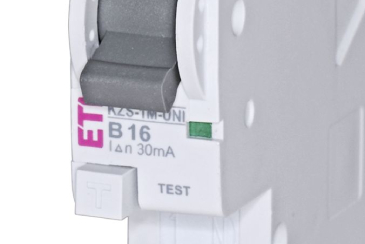

Seperate indication of contacts' real state (independent of the toggle position) ensures additiona user safety

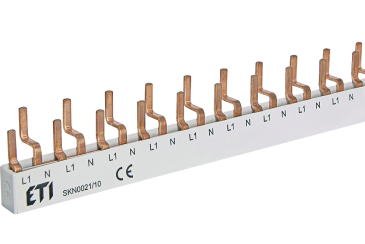

 The possibility of connectiong to SKN-type busbars





 Catalogue

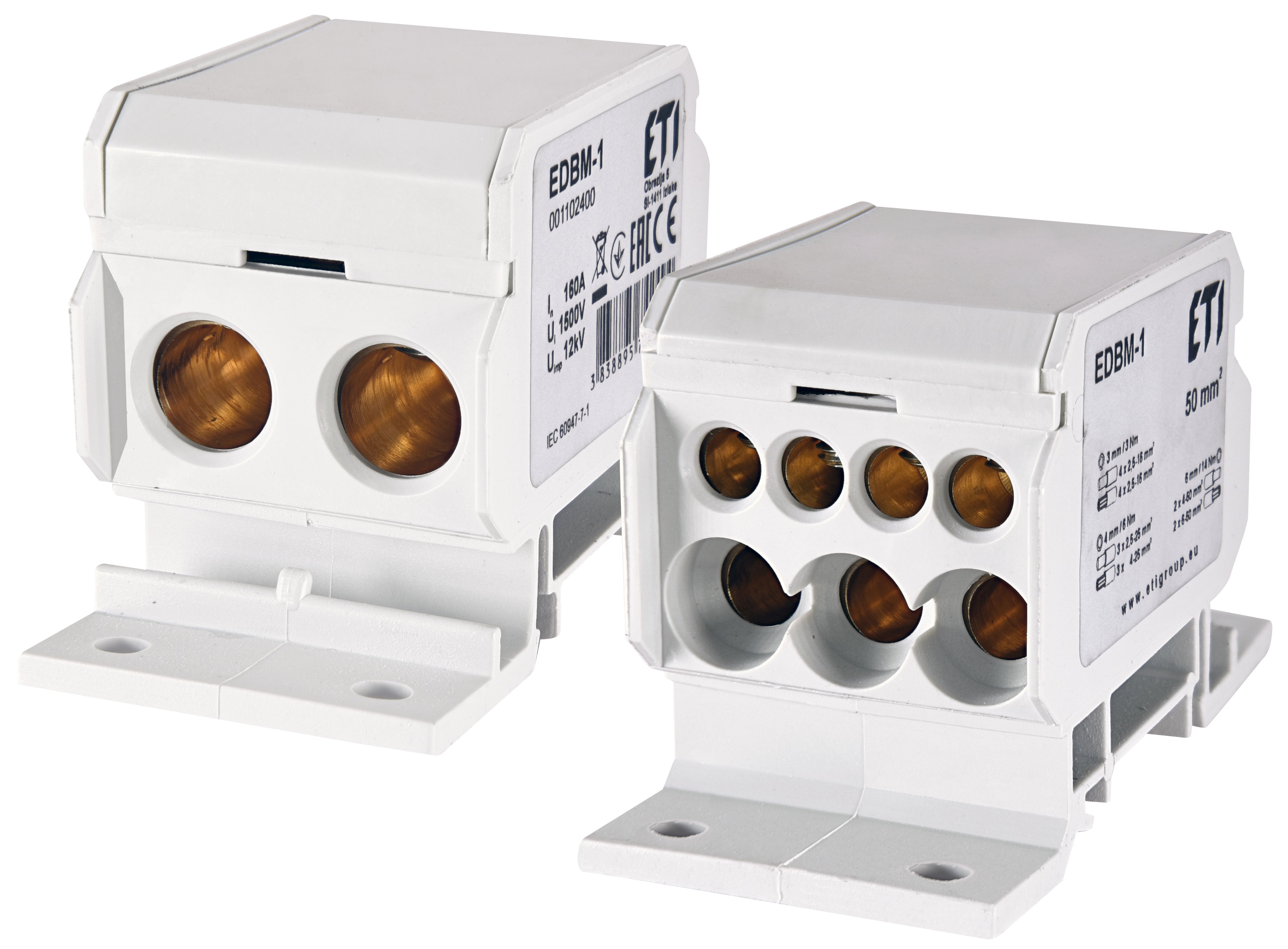

DIN Rail Distribution Blocks EDBM

DIN Rail Distribution Blocks EDBM

DIN Rail Distribution Blocks EDBM



DIN rail distribution blocks EDBM, are used in low-voltage (LV) switchboards for efficient and organized distribution of electric energy. Easy mounting, high insulation voltage, and compliance with IEC standards ensure optimal performance.



ETI Prostik's High-Quality Photovoltaic DC Combiner Boxes with Advanced Surge Protection

ETI Prostik's High-Quality Photovoltaic DC Combiner Boxes with Advanced Surge Protection

ETI Prostik Unveils High-Quality Photovoltaic DC Combiner Boxes with Advanced Surge Protection



ETI Prostik,'s DC combiner boxes are designed to streamline the integration of solar panels into a single output, significantly simplifying the installation process of PV systems. What sets these combiner boxes apart is the integrated surge protection feature, which safeguards the solar panels and other electrical components from potential damage caused by voltage spikes and surges

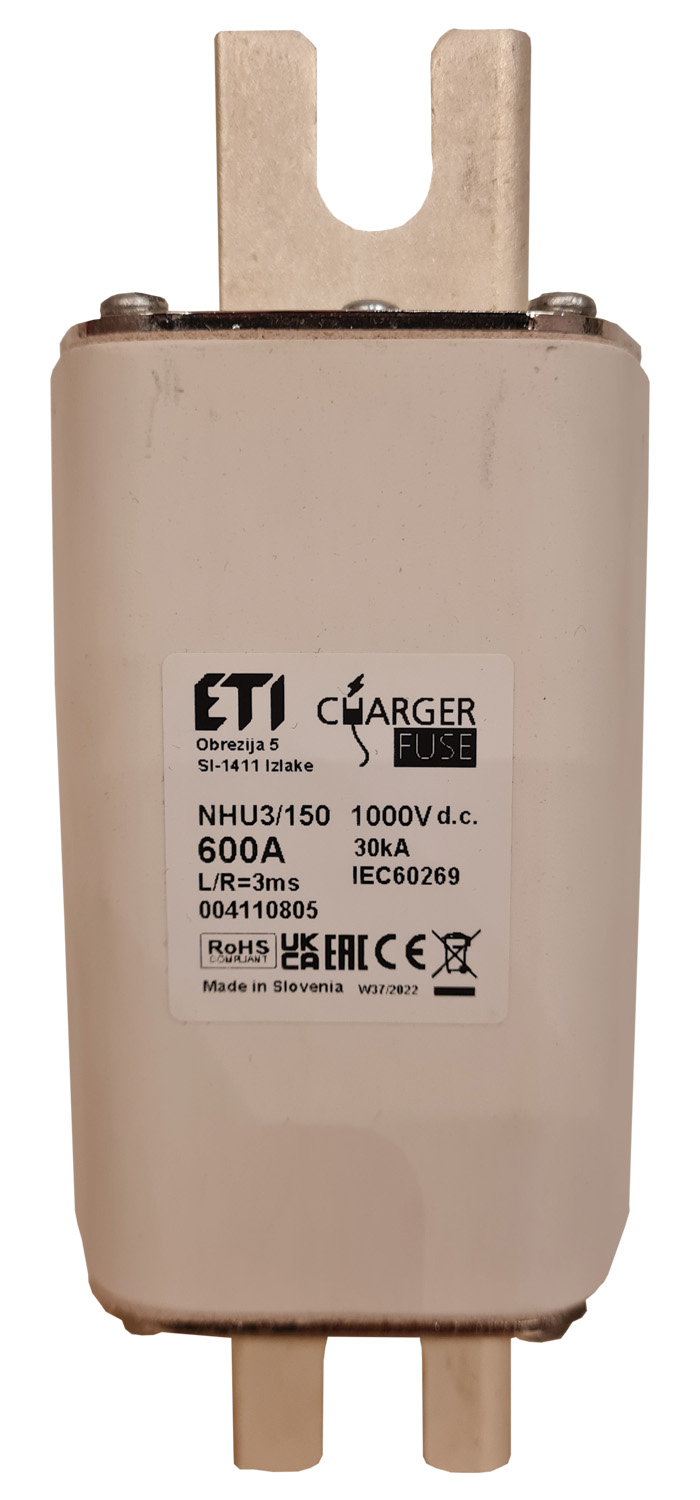

NH Charger fuse-link 1000V d.c.

NH Charger fuse-link 1000V d.c.

Charger fuse for protection of highpower DC EV chargers



Safety is our top priority when it comes to DC (Mode 4) charging systems. That's why our Charger fuse plays a vital role in safeguarding DC circuits, capable of handling voltages up to 1000V DC and rated currents up to 600A. These specially designed fuses feature unique dimensions and connection contacts tailored to meet the specific requirements of each charging application.

The electrical protection of DC EV charging stations is of utmost importance in ensuring a safe and secure charging environment. Charger fuse boasts impressive characteristics, including a 1000V DC voltage rating, rated currents ranging from 50A to 600A, a breaking capacity of 30 kA, and compliance with standards IEC 60269-4 and IEC 60269-6. With a tested time constant of 3 mS, it proves suitable for a wide range of DC applications. Available in aR and gPV characteristic, which further enhances its performance and reliability, the Charger fuse is ideal for public fast (high power) charging stations, where the need for efficient and robust electrical protection is paramount.





 Catalogue





Frequency and voltage monitoring relay HRN-100

Frequency and voltage monitoring relay HRN-100

Frequency and voltage monitoring relay HRN-100

Multifunction voltage and frequency monitoring relay with LCD display for protection of devices connected to 3 phase network.







 Advantages:

  • 3-wire or 4-wire connection (with or without neutral)
  • Monitoring of upper and lower voltage & frequency in 3-phase circuits, phase sequence, failure and asymmetry incl. neutral fail (only in 4-wire connection).
  • The device is supplied from monitored voltage.
  • Both output contacts can be set individually.
  • Measures real effective value of AC voltage (True RMS).
  • Optional response delay of the output contact to the measured fault state or transition from the fault state to the OK state incl. delayed response of output contacts after connecting the power supply
  • Optional closing or opening of the output contact when measuring a fault state (Fail Safe / Non Fail Safe).











 Catalogue





Programmable staircase switch CRM-46

Programmable staircase switch CRM-46

Programmable staircase switch CRM-46

Staircase switch enables delayed switching off of lighting on stairs, corridors, entrances, common areas or for delayed running of fans in the toilet or bathroom:









Advantages:

  • 1 TE size, DIN rail mounted.
  • Supply voltage: AC 230 V
  • Long press (> 2 s) can switch off the output prematurely and end the ongoing delay.
  • Control input with the possibility of loading up to 100mA load (glim lamp, LED in the button, etc.).






 Catalogue





SSQ Modular changeover switch

SSQ Modular changeover switch

SSQ Modular changeover switch

Modular changeover switches SSQ I-0-II (network - generator) enable simple and trouble-free switching of power supply sources in case of emergency (e.g. mains voltage failure). They are designed for installation in switchgear equipped with TH35 rails adapted for mounting modular devices. Switches can be sealed for the selected positions: I or II.









Advantages:

  • the family of SSQ changeover switches expands the EVE modular system range,
  • all changeover switches are made in modular form - module width 18 mm,
  • the distance between the changeover switch contacts in the open state is larger than 3 mm per one pair of contacts, (two pair of contacts in the current path of changeover switch)
  • the changeover switches are equipped with terminals enabling connection of conductors of cross-section : 16 mm2 for a “wire” type wire; 10 mm2 for a “ stranded wire” type cable.






 Catalogue





NEW network analyzer END20LRS

NEW network analyzer END20LRS

NEW network analyzer END20LRS

END20LRS is distinguished by a high measurement accuracy, legible backlight LCD display and an attractive price in relation to offered measuring functions. It is the ideal tool to control and monitor energy quality parameters and energy consumption in all industry branches, public utilities or in public service buildings.









Features:

 - Measurementofallnetworkparameters
 - Protectiongrade fromthefrontalside: IP65
 - Digitaltransmissionto themastersystemthroughtheRS-485 interface(MODBUS RTU)
 - 1x relayoutputforalarm and1x pulseoutput






 Catalogue
