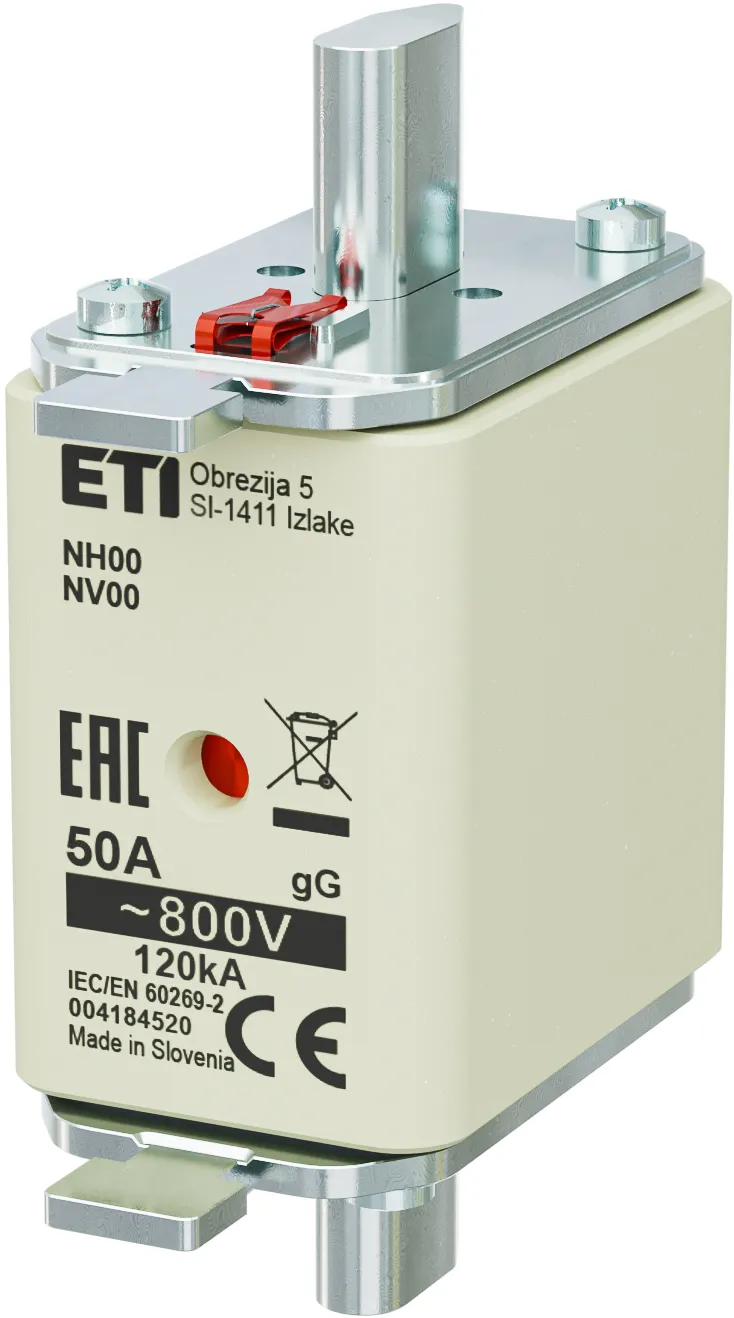

Fuse link NH00 gG 50A/800V 004184520
Specifications
- ETI Code:
- 004184520
- Description:
- NH00 gG 50A/800V
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 50
- Type:
- NH
- Standards:
- IEC 60269-2
- Size:
- NH00
- Characteristics:
- gG
- Rated AC voltage (V):
- 800
- Indicator:
- Combination fuse status indicator
- Breaking capacity AC (kA):
- 120
- Power dissipation (W):
- 4,8
- Power dissipation (0,7xIn) (W):
- 2,1
- Operating joule integral (A2s):
- 27.000
- Prearcing joule integral (A2s):
- 4.300
- Application:
- For cable protection on 800V a.c. system voltage
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895946724
- Net weight of the product
- 170 g
- Customs tariff
- 85361050
- logis_net_width
- 30 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 56 mm
Level 1 Packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895943631
- Basic packaging weight
- 0.483 kg
Level 2 Packaging
- Transport packaging quantity
- 90
- EAN code for a transport packaging
- 3838895943648
- Transport packaging weight
- 14.84 kg
- Pallet quantity
- 4680
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH00
- Rated current
- 50
- Rated voltage
- 800
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
